NudgeBee is an enterprise-grade AI observability, incident triage, and automation platform designed around a core philosophy: "Install Once, Build Forever" — where the marginal cost of running your $N$-th agent trends toward zero, and the compounding intelligence of the platform increases with every incident, metric, and workflow.

1. Platform Reference Architecture​

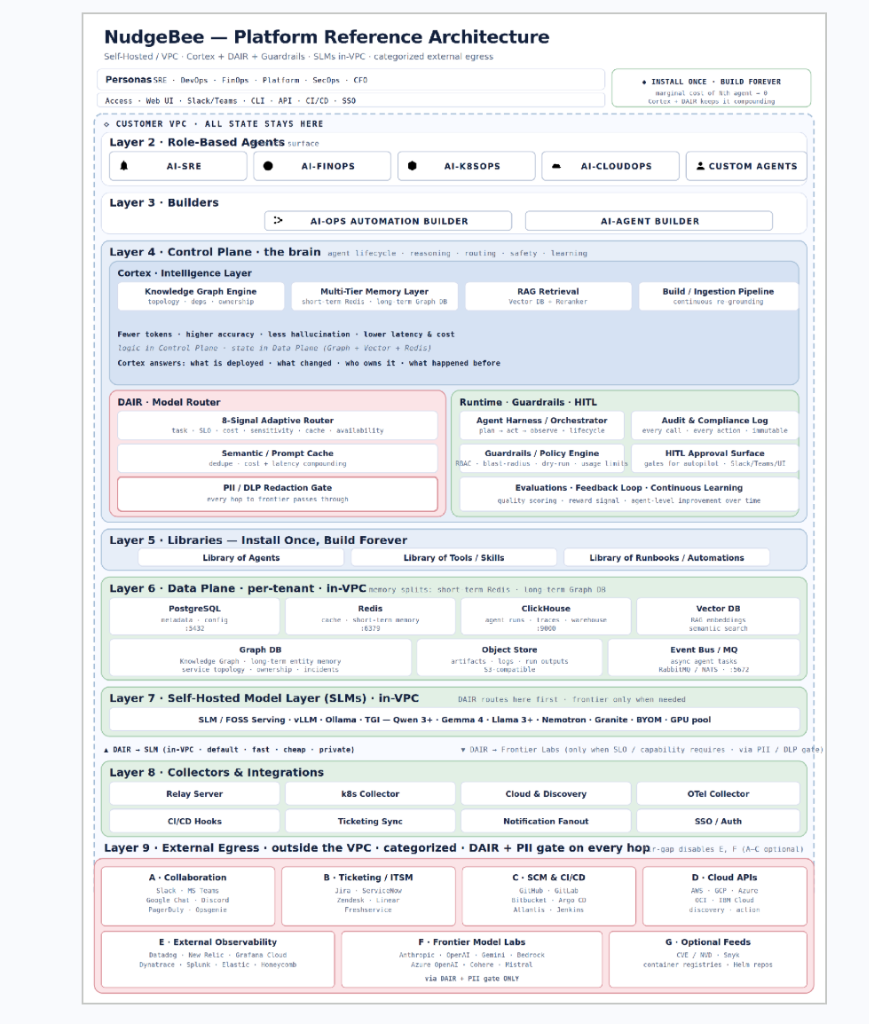

NudgeBee Platform Reference Architecture

Platform Architecture Reference (9-Layer Model)​

LayerFunctional DomainKey Capabilities & ComponentsDeployment Boundary
Layer 1Personas & AccessSRE, DevOps, FinOps, SecOps, Platform, CFO via Web Dashboard, Slack/Teams ChatOps, CLI, REST/GraphQL APIs, and SSO.User Interface
Layer 2Role-Based AgentsAI-SRE (RCA & triage), AI-FinOps (cost & rightsizing), AI-K8sOps (workload reliability), AI-CloudOps (cloud drift & scans), and Custom Agents.In-VPC Control Plane
Layer 3BuildersAI-Ops Automation Builder (visual runbook/DAG composer) and AI-Agent Builder (agent definition & prompt harness).In-VPC Control Plane
Layer 4Control Plane (The Brain)• Cortex Intelligence: Knowledge Graph Engine, Multi-Tier Memory (Redis + Graph DB), RAG Vector Retrieval, Continuous Grounding.
• DAIR Router: 8-Signal Model Router, Semantic Prompt Cache, PII/DLP Redaction Gate.
• Runtime & Guardrails: Agent Harness (Plan-Act-Observe), Policy Engine, HITL Approval Surface, Immutable Audit Logs.		In-VPC Control Plane
Layer 5Libraries ("Install Once, Build Forever")Library of Pre-Built Agents, Library of Diagnostic Tools/Skills, and Library of Automated Runbooks.In-VPC Control Plane
Layer 6In-VPC Data PlanePostgreSQL (metadata/config), Redis (sessions/cache), ClickHouse (runs/traces), Qdrant (RAG vectors), Graph DB (topology/ownership), Object Store (S3-compatible artifacts), RabbitMQ (event bus).In-VPC Customer Data Plane
Layer 7Self-Hosted SLM ServingLocal private Small Language Model serving via vLLM / Ollama / TGI (Qwen 3+, Llama 3+, Gemma 4, Nemotron, Granite, BYOM GPU pools).In-VPC Model Layer
Layer 8Collectors & IngressRelay Server (:8080), k8s-collector, cloud-collector, OpenTelemetry Collector, and Ticketing/GitOps Sync.In-VPC & In-Cluster
Layer 9Categorized External EgressCollaboration (Slack, Teams), ITSM (Jira, ServiceNow), SCM (GitHub, GitLab), Cloud APIs (AWS, GCP, Azure), Observability backends, and Frontier LLMs (via DAIR + PII Gate).External Egress

Layer Deep-Dive​

Cortex • The Intelligence Layer​

Cortex is NudgeBee's semantic reasoning engine. Instead of passing massive, unstructured context to expensive LLMs, Cortex maintains a continuously updated model of your infrastructure:

  • Knowledge Graph Engine: Maps service dependencies, network topologies, infrastructure layers, and engineering team ownership.
  • Multi-Tier Memory: Combines millisecond short-term memory (Redis) for live alert context with persistent Graph DB memory for long-term historical incident learning.
  • RAG Retrieval: Combines dense vector search (Qdrant) with cross-encoder rerankers to ground AI responses in relevant runbooks, docs, and postmortems.
  • Continuous Grounding: Automatically updates context as pods deploy, git commits merge, or alert rules fire.

DAIR • Dynamic Adaptive Inference Router​

DAIR optimizes every model invocation across 8 real-time signals: task complexity, latency SLO, token cost, data sensitivity, cache hit status, model availability, context window size, and reasoning depth.

  • In-VPC SLM Serving First: Simple tasks (log summarization, event classification, metric anomaly detection) are routed locally to private Small Language Models (e.g. Qwen 3+, Llama 3+, Gemma) running inside your cluster or VPC GPU pool.
  • Semantic Prompt Cache: Deduplicates repetitive prompts and queries to prevent redundant model calls.
  • PII / DLP Redaction Gate: Any query escalated to external frontier models (e.g. AWS Bedrock, OpenAI, Anthropic) passes through an inline DLP sanitizer to redact secrets, tokens, IPs, and user PII before leaving the VPC boundary.

Runtime & Guardrails​

  • Agent Orchestrator: Executes structured Plan → Act → Observe → Evaluate loops with bounded iteration limits.
  • Policy Engine: Enforces strict RBAC, blast-radius constraints, and mandatory dry-run execution for mutating operations.
  • Human-In-The-Loop (HITL): Provides interactive approval gates directly within Slack, Microsoft Teams, and the Web UI before any remediation action is executed in production.
  • Immutable Audit Log: Every prompt, tool execution, intermediate reasoning step, and user approval is recorded immutably in PostgreSQL/ClickHouse.

2. Runtime Microservices Architecture ("What Runs Where")​

The diagram below illustrates how NudgeBee's core microservices, datastores, and collectors interact at runtime:

3. Data Privacy & Network Isolation​

  • Zero Inbound Ports: Monitored agents connect to the Control Plane exclusively via outbound HTTPS / WSS (TCP port 443). No firewall openings or public IPs are required in monitored environments.
  • In-VPC Data Sovereignty: All cluster metrics, logs, traces, knowledge graph topologies, and audit trails remain within your dedicated storage cluster.
  • Air-Gapped & Offline Ready: NudgeBee can be deployed entirely air-gapped using local container registries, internal PostgreSQL/Redis, and in-VPC SLMs served by vLLM or Ollama.
