Troubleshooting Action Customisation

Nudgebee provides flexible options to define Prometheus alerts and attach automated troubleshooting actions using playbooks.

---

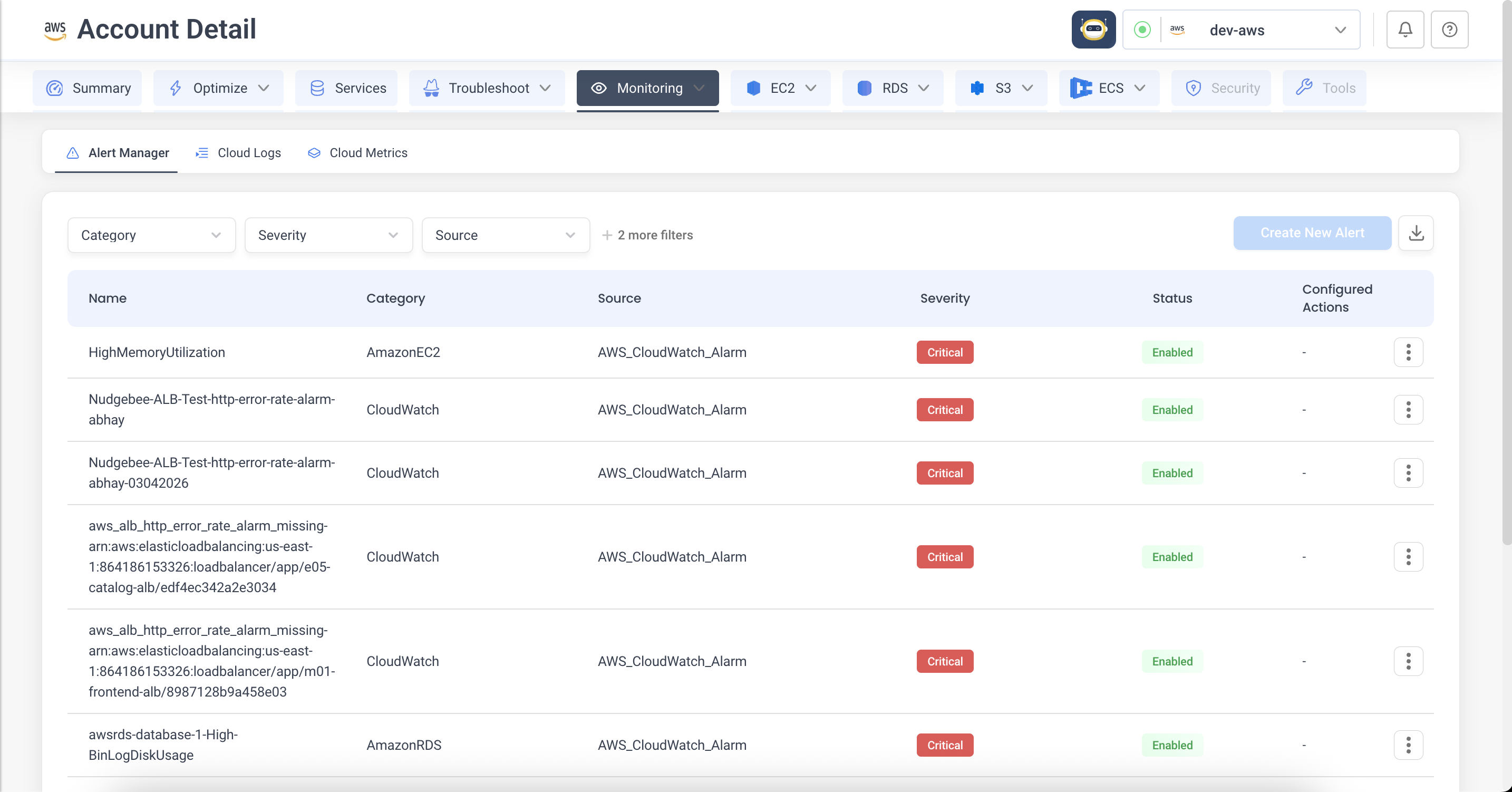

📍 Accessing AlertManager

1. Navigate to the Monitoring tab in the Nudgebee dashboard.
2. Click on the AlertManager section.

This is where you can view, create, and manage Prometheus alert rules.

---

➕ Creating a New Alert

To create and configure a new alert:

1. Click the "New" button.

2. Fill out the following details:

   • Alert Name: A meaningful name for the alert.

   • Alert Summary: A short description of what the alert tracks.

   • Severity: Choose from predefined levels like Critical, High, Warning, or Info.

   • PromQL Query: Enter the Prometheus query that determines the alert condition.

   • For Duration (optional): Set a time window (e.g., 10m) to ensure the condition holds consistently before the alert fires.

     • This avoids alerting on short-lived or flapping issues.
     • For example, for: 10m means the condition must remain true for 10 minutes before alerting.

3. Click Validate to check the query syntax and preview the results.

4. Once validated, click Save to create the alert.

---

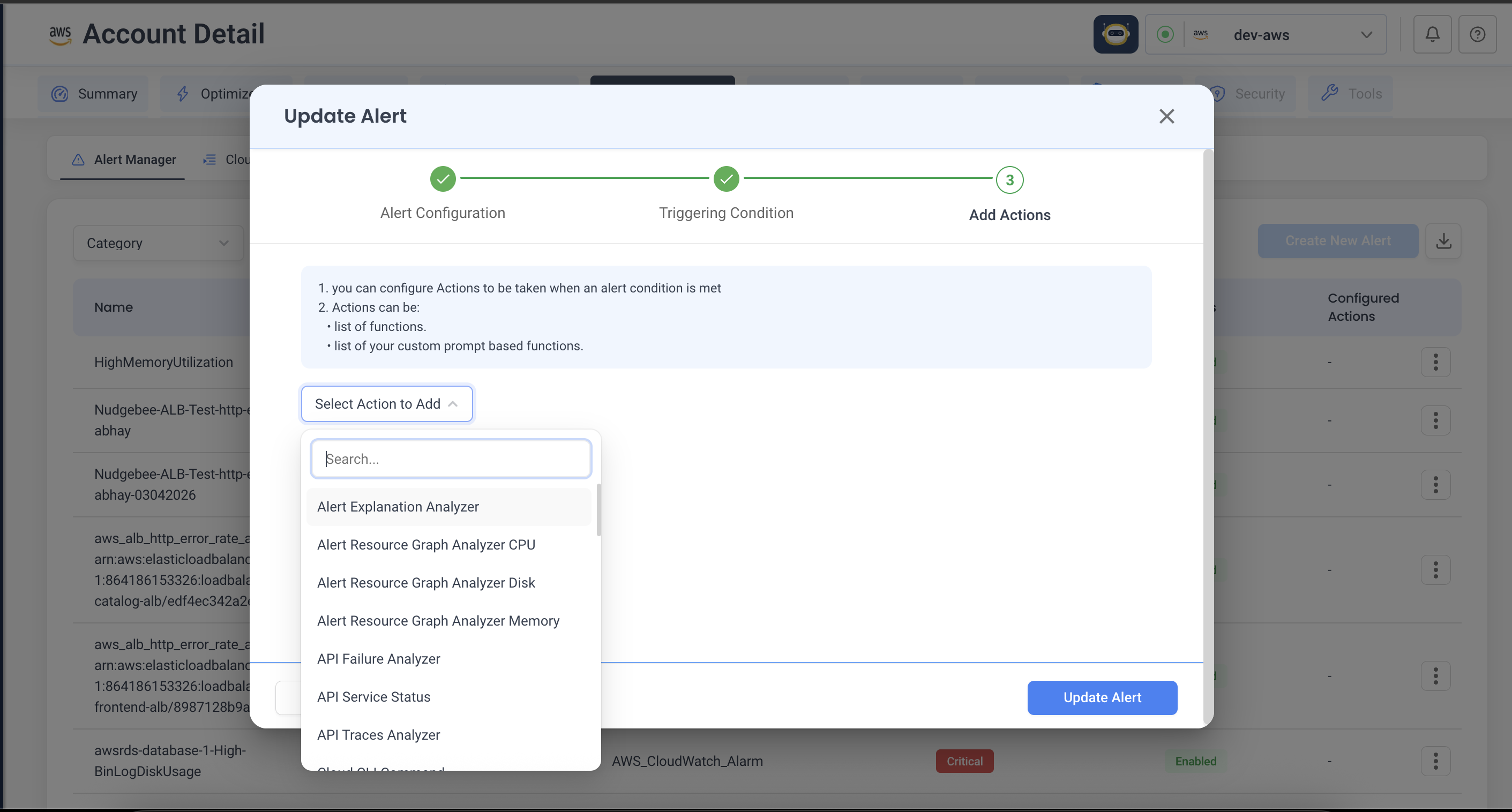

🛠️ Attaching Playbooks for Auto-Triage

After an alert is created:

1. Select the alert from the list.
2. Navigate to the Playbooks tab.

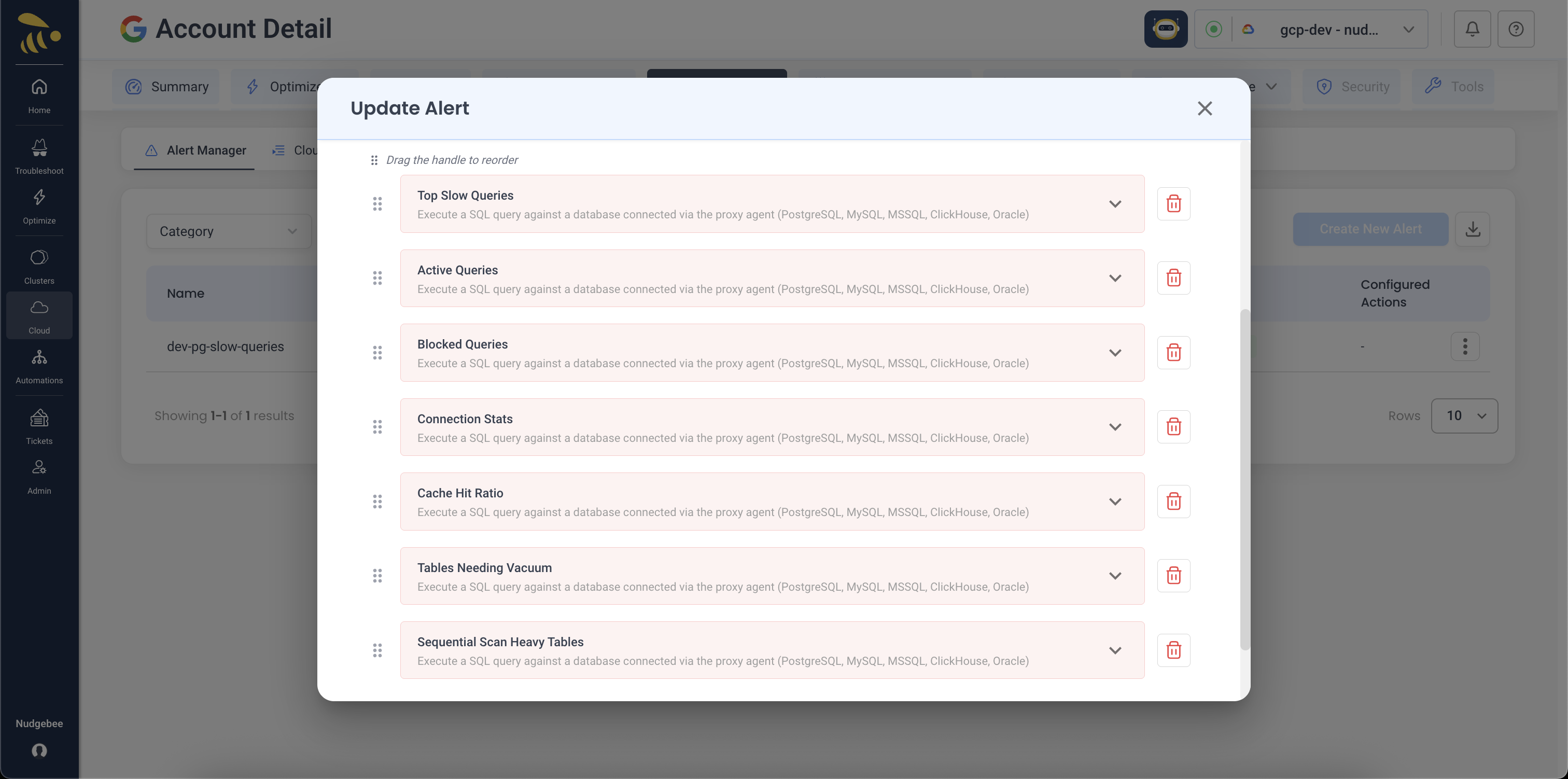

3. Choose one or more playbooks to attach.

Playbooks define automated actions to be performed when the alert is triggered — for example:

• Collect pod logs
• Analyze recent deployment changes
• Inspect CPU/memory usage
• Check related Kubernetes resources

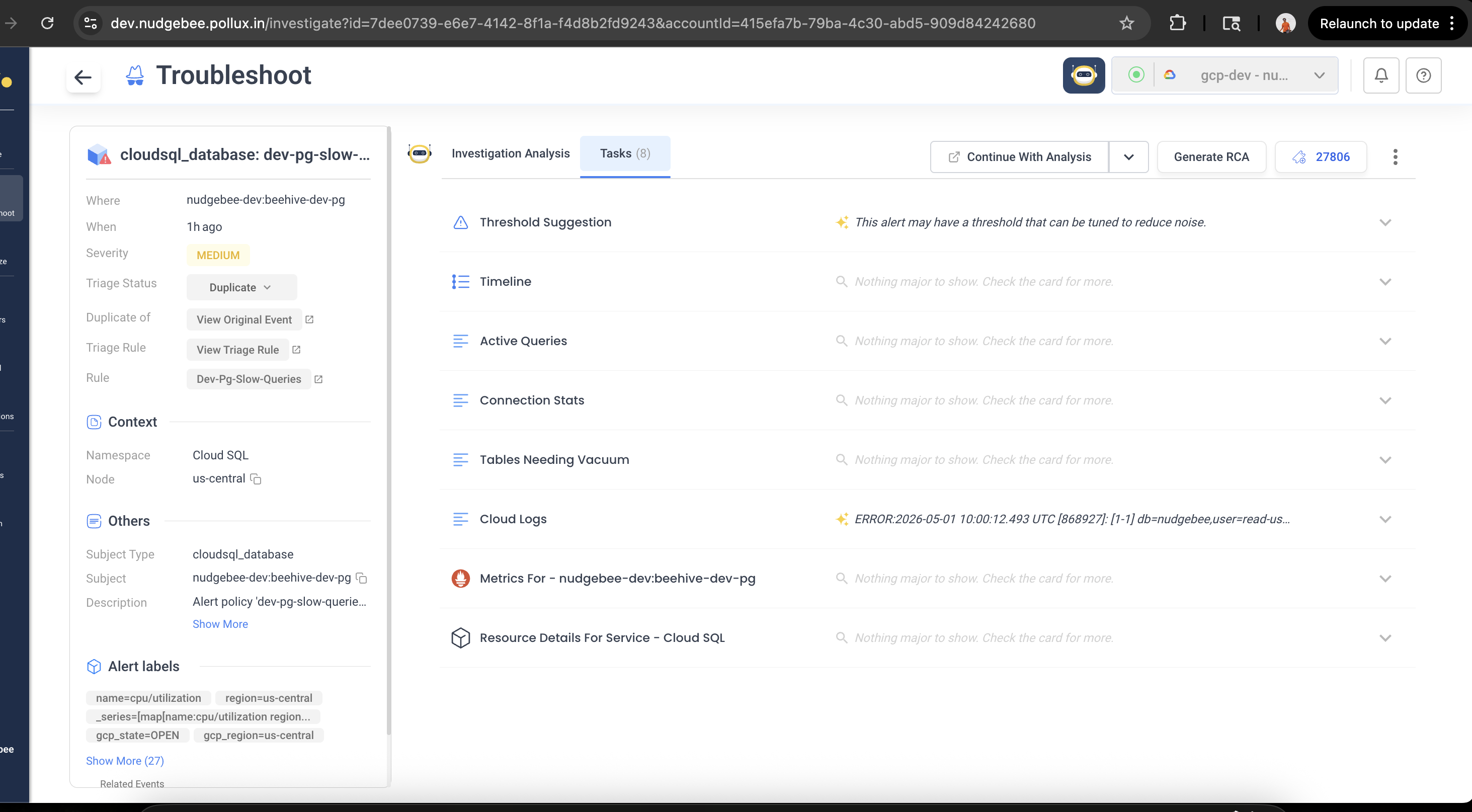

These actions enrich the alert with investigative data, reducing the time to root cause.

---

📚 Supported Playbooks

You can find a comprehensive and categorized list of supported playbooks in the Nudgebee Playbook Catalog. Each playbook provides:

• A user-friendly display name
• A detailed description
• Required and optional parameters
• Valid input types and defaults

These playbooks support diagnostics across Kubernetes workloads, nodes, clusters, and external services (like PostgreSQL).

Examples include:

• Logs Enricher – Stream logs from affected pods (non-scripting)
• Pod Enricher – Provides structured pod-level metadata for templating
• Node Disk Analyzer – Highlight disk usage and pod-level breakdowns
• Pod Profiler – Trigger CPU/memory profiling of a container
• Prometheus Query Analyzer – Run on-the-fly queries for real-time insight
• Nudgebee Runbook Trigger – Invoke full remediation playbooks

🧩 Conditional Actions

Some playbooks return structured data suitable for conditional logic via Jinja templating. These enable intelligent workflows.

✅ Pod Enricher – Output Format

Returns an object with:

{
  "name": "pod_details",
  "data": {
    "pod_name": "string",
    "namespace": "string",
    "node": "string",
    "cpuRequest": float,
    "memoryLimit": int,
    "containers": [
      {
        "name": "string",
        "restarts": int,
        "status": {
          "container_statuses": [
            { "state": { "waiting": { "reason": "CrashLoopBackOff" } } }
          ]
        }
      }
    ]
  }
}

📌 Example Jinja Conditional

    "{{ pod_details.data.containers | selectattr('status.container_statuses') | map(attribute='status.container_statuses') | map('selectattr', 'state.waiting.reason', 'in', ['CrashLoopBackOff', 'ImagePullBackOff']) | list | length > 0 }}"

---

✅ Summary

With Nudgebee's AlertManager and rich playbook ecosystem, you can:

• Create alerts visually with PromQL
• Delay firing with for clause to avoid flapping alerts
• Automatically enrich alerts with real-time diagnostics
• Trigger scripts, queries, and external tools for faster triage

This makes your Kubernetes alerting not just reactive, but intelligent.
